Petrography
CUTTING
BainCut SRC AUTO
- Sturdy Floor Model Cutter with Wet & Dry sectioning of Refractory Brick up to 1000mm x 150mm x 100mm powered by Motor 15HP, 3Phase motor
- Cut-off wheel dia 20” (500m)
- 3 Axis user friendly movement (X,Y & Z)
- ‘Z’ Movement automatic with servo system
- Variable speed 1000-3000rpm
- Coolant Tank with 150L capacity
- Multiple coolant jets (4 Nos)
- Exhaust system provided with the machine
- Dry & Wet type system for different application
- Door Safety interlock system
- Table : 500 x 500 mm with 12mm T-Slot
- Machine size : 1700 x 1700 x 1900 mm
BainCut Large GEO
- Cutting capacity up to 110mm dia
- Powered by 7.5 HP (5.5 kw) , 3 Phase motor
- Inbuilt movable re-circulation coolant tank
- Cut-off wheel dia 14” (350mm)
- Three axis movement (X,Y and Z)
- Spindle speed 2880 rpm
- Easy operator panel
- Safety emergency stop with door limit switch
- Z movement ergonomic handle
- Table size : 400mm x 400mm with 8mm T-Slot
- Dry & Wet type system for different application
BainCut GEO
- Specimen Cutting Diameter up to 90mm
- Diamond wheel
- 5 HP Motor, 3 Phase
- Different Wheel size can be accommodated 10”/12”
- X-Movement for cross sectioning – 50mm
- Y Movement for longitudinal sectioning – 200mm
- Ergonomic Z Movement handle
- Dry & Wet type system for different application
- Stainless steel platform with 8mm T slot
- Double saddle clamp
- LED lamp in the working area for clear illumination
BainCut HSS PLUS
- Cutting capacity up to 60 mm
- Large movable cutting T-Slot Table 250 x 200mm
- “Z” Movement upto 40 mm
- Door safety interlock system
- 2 HP, 3 Phase Motor
- X Movement scale reading system
- Variable speed 100-5000rpm
- Powerful LED lamp
- Diamond wheel upto 8” (200mm) dia
- Dry & Wet type system for different application
- Easy to clean cutting chamber
- Fume exhaust port
- More quantity of samples can be generated in one command
BONDING
Bain Bond Geo
- Spring loaded system
- 8 specimens can be mounted during single operation
- Glass slide up to 46 x 72mm can be accommodate
- Compatible heater with temperature controller
- Temperature upto 300c
- Digital Indicator
THIN SECTION

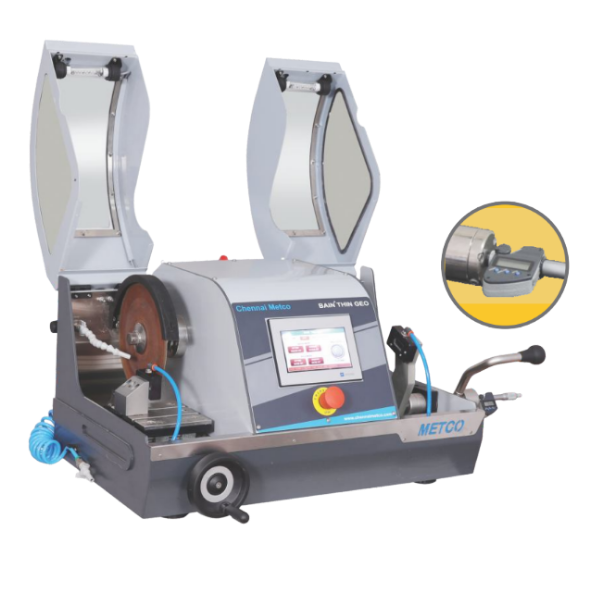

Bain Thin GEO
- Cutting and Grinding for specimen size up to 30 microns or less 2 HP 3 Phase servo motor
- Built in micrometer with Digital Readout system to easily measure the Grinding thickness of specimen
- Diamond Cutting Wheel Diameter accommodate diameter from 6” to 10”
- Diamond Cup Grinding Wheel diameter can vary from 6” to 8”
- Specimen Holder with Vacuum Chuck for different sizes of Glass Slides
- Built in Micrometer with Digital Readout
- Circulated coolant tank with 50 liters capacity
- Recirculated coolant through filtering system which is useful to avoids the blockage of powders onto the coolant
POLISHING
Bainpol GEO
- Can hold upto 6 moulds
- Hold multiple moulds : 1 1/4″ dia (std), 1 1/2″ and 2“
- Metric mould option 30,40,50 mm
- Disc size 10″ (12″ Optional)
- 1 Hp high torque AC motor
- Single phase input
- Variable disc speed 50 to 150 rpm
- Individual pressure specimen loading
- Individual force 10 – 90N
- Machine size: 850 x 500 x 600 mm
